Rotary Air Lock Valve Manufacturing in India
Rotary Air Lock Valves in India
ACE Engineering is a leading manufacturer of heavy-duty Rotary Air Lock Valves in India, setting the benchmark for performance, durability, and reliability across diverse industries. With years of expertise in ROTARY AIR LOCK VALVE manufacturing in India, we deliver precision-engineered solutions that ensure seamless material handling and process efficiency.
Key Features of ACE Engineering Rotary Air Lock Valves
- Built with rugged sealed outboard bearings to maximize durability and extend service life.
- Offers optional body venting and purging packing glands for enhanced process flexibility.
- Designed with self-lubricating bearings to ensure smooth, maintenance-free operation.
- Available in both fall-through and blow-through configurations to suit diverse applications.
- Paddle-type rotor design ensures safe handling of granular materials, minimizing jamming and breakage.
- Optimized for efficient powder transfer and handling in demanding industrial environments.
- Engineered to withstand high-temperature operations, ensuring reliability under extreme conditions.
- Material of Construction (MOC): CI, CS, HRS, SS304, SS316, SS316L – tailored to your process needs.
- Line injector and venting box
Rotary Air Lock Valve Dimensions
| Diameter (MM) | LT / Rev | Motor HP | Empty Weight (kg) | Flange to Flange Height | Width (A*B) Overall | Flange Opening |
|---|---|---|---|---|---|---|
| 150 | 3.4 | 0.5 | 100 | 280 | 520 * 530 | Round |
| 200 | 5.4 | 0.5 | 125 | 325 | 575 * 580 | Round |
| 250 | 10.4 | 1.0 | 200 | 400 | 650 * 580 | Round |
| 300 | 18 | 1.5 | 250 | 450 | 720 * 760 | Round |
| 350 | 28 | 2.0 | 400 | 520 | 770 * 900 | Round |
| 400 | 48 | 3.0 | 550 | 570 | 880 * 880 | Round |
| 450 | 62 | 3.0 | 650 | 640 | 1010 * 750 | Round |

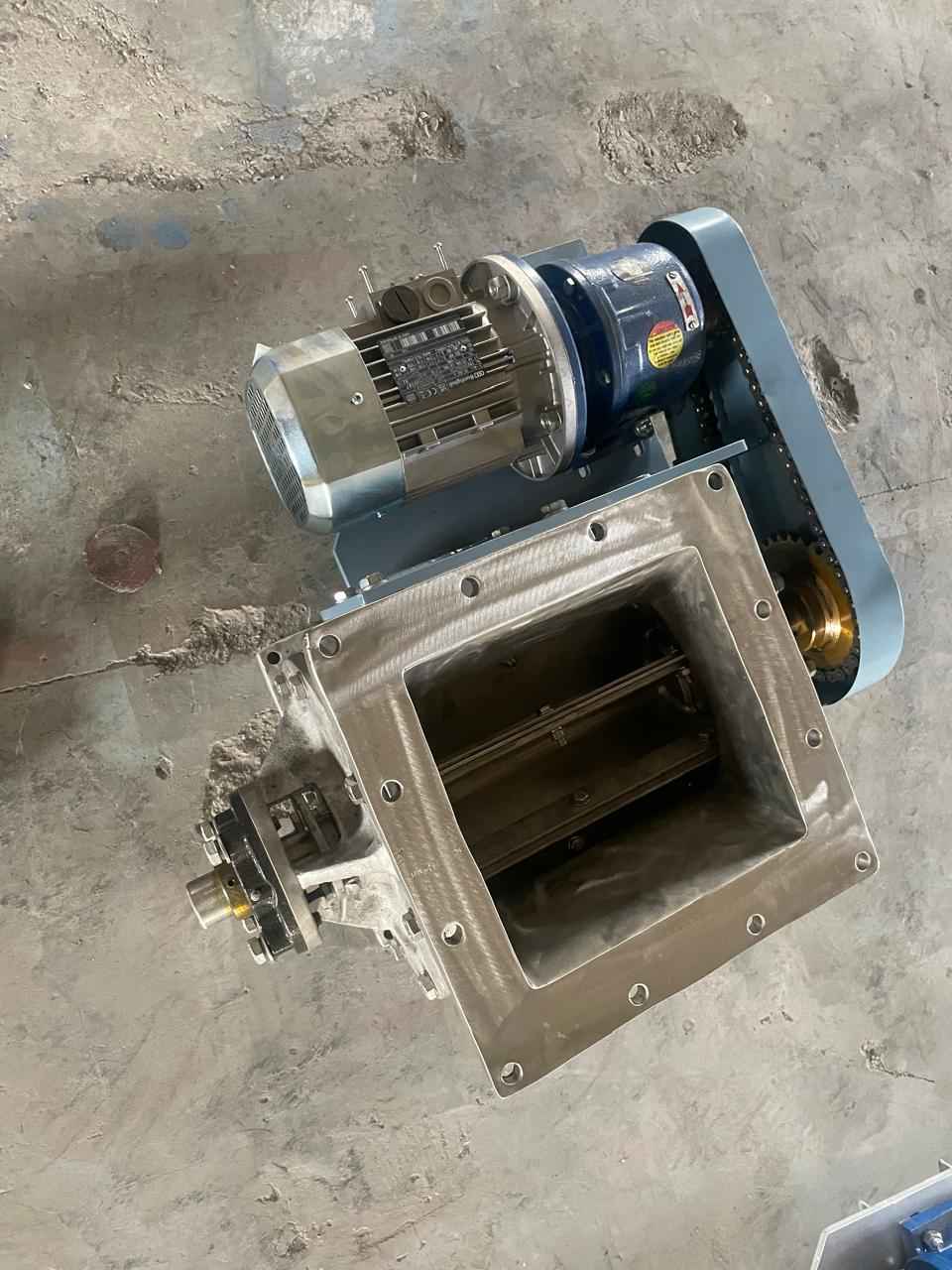

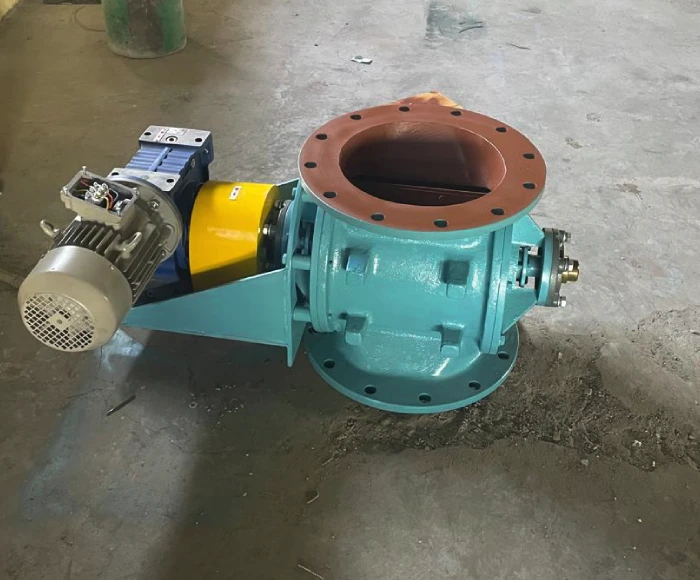

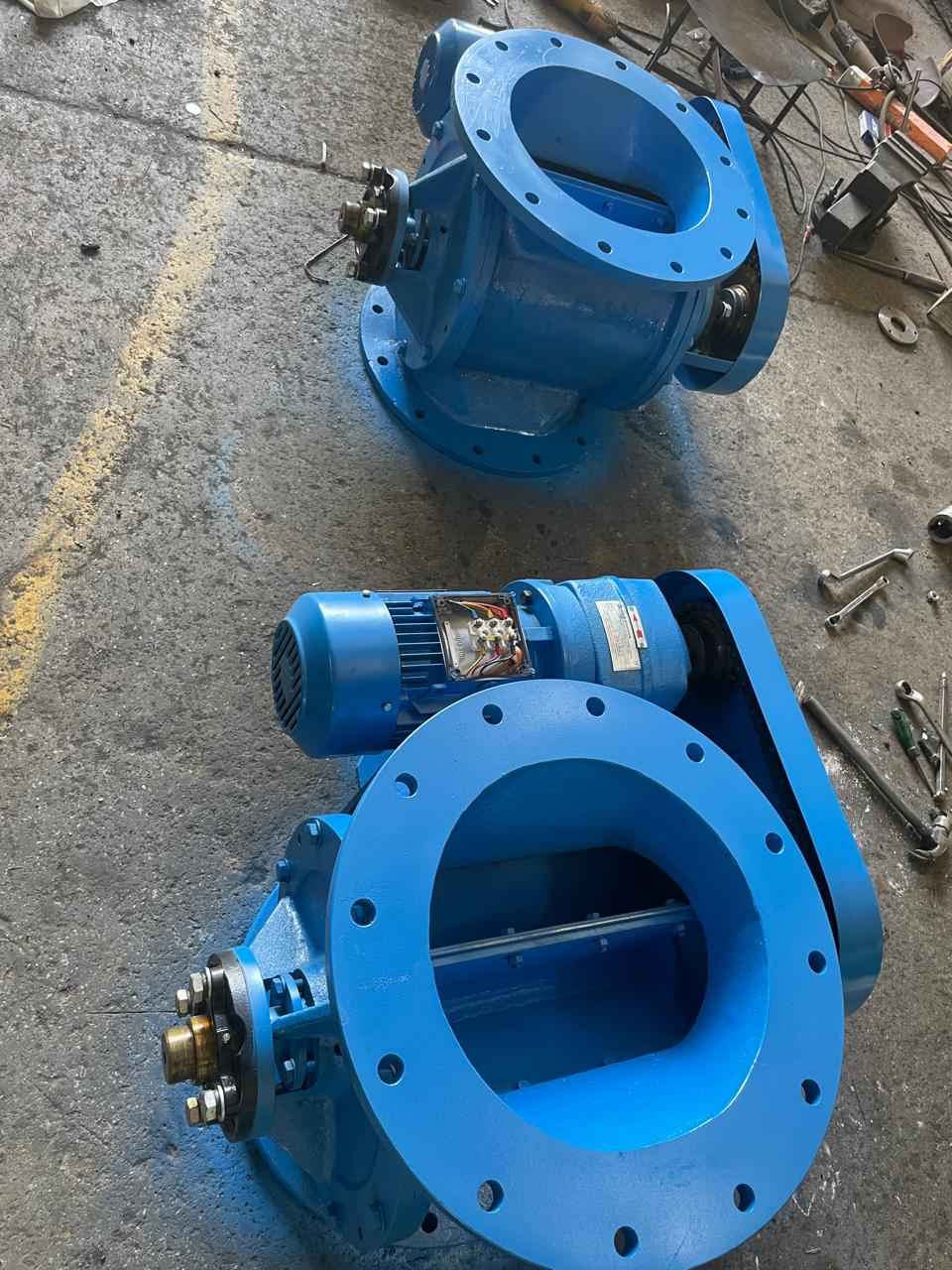

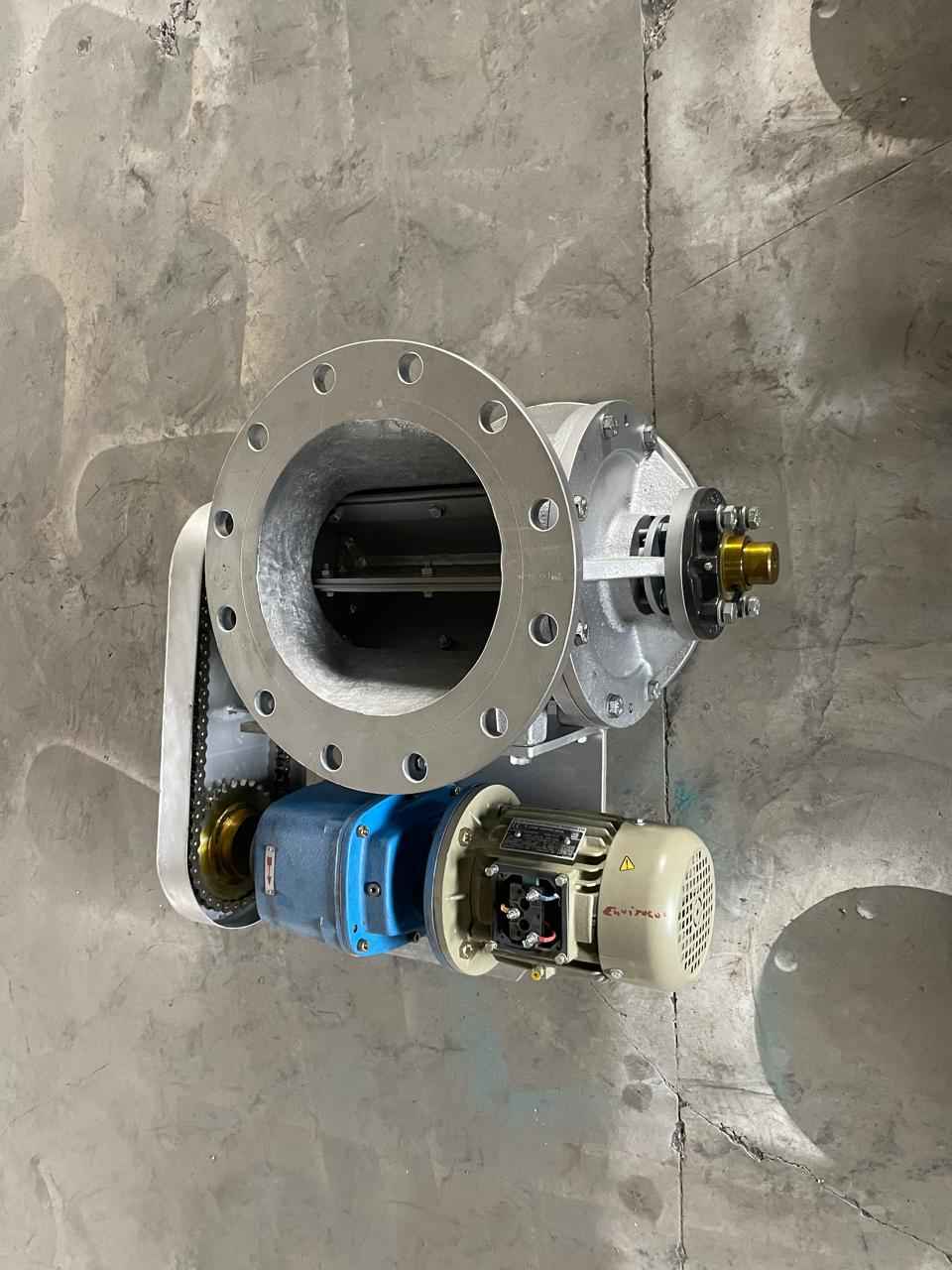

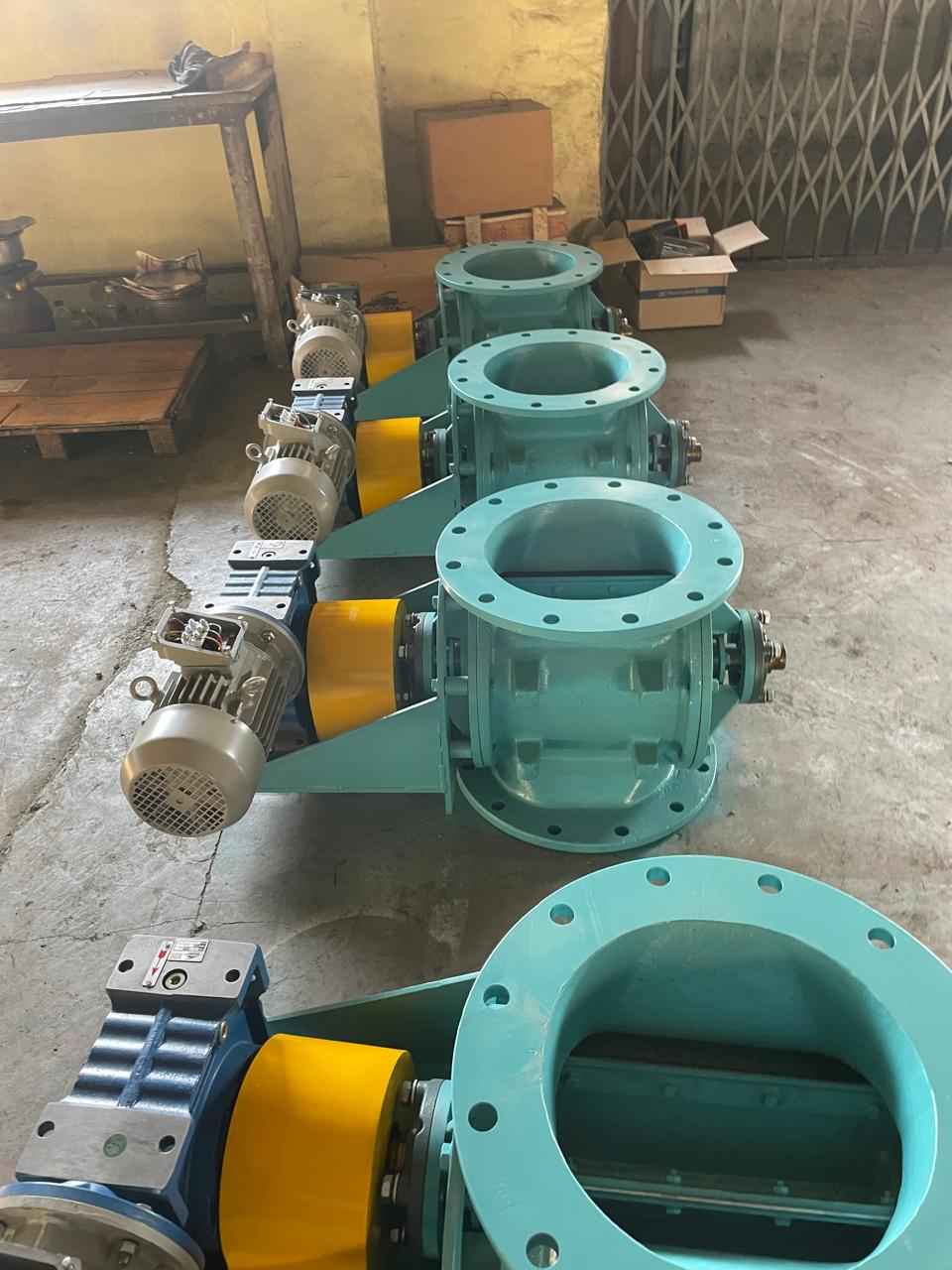

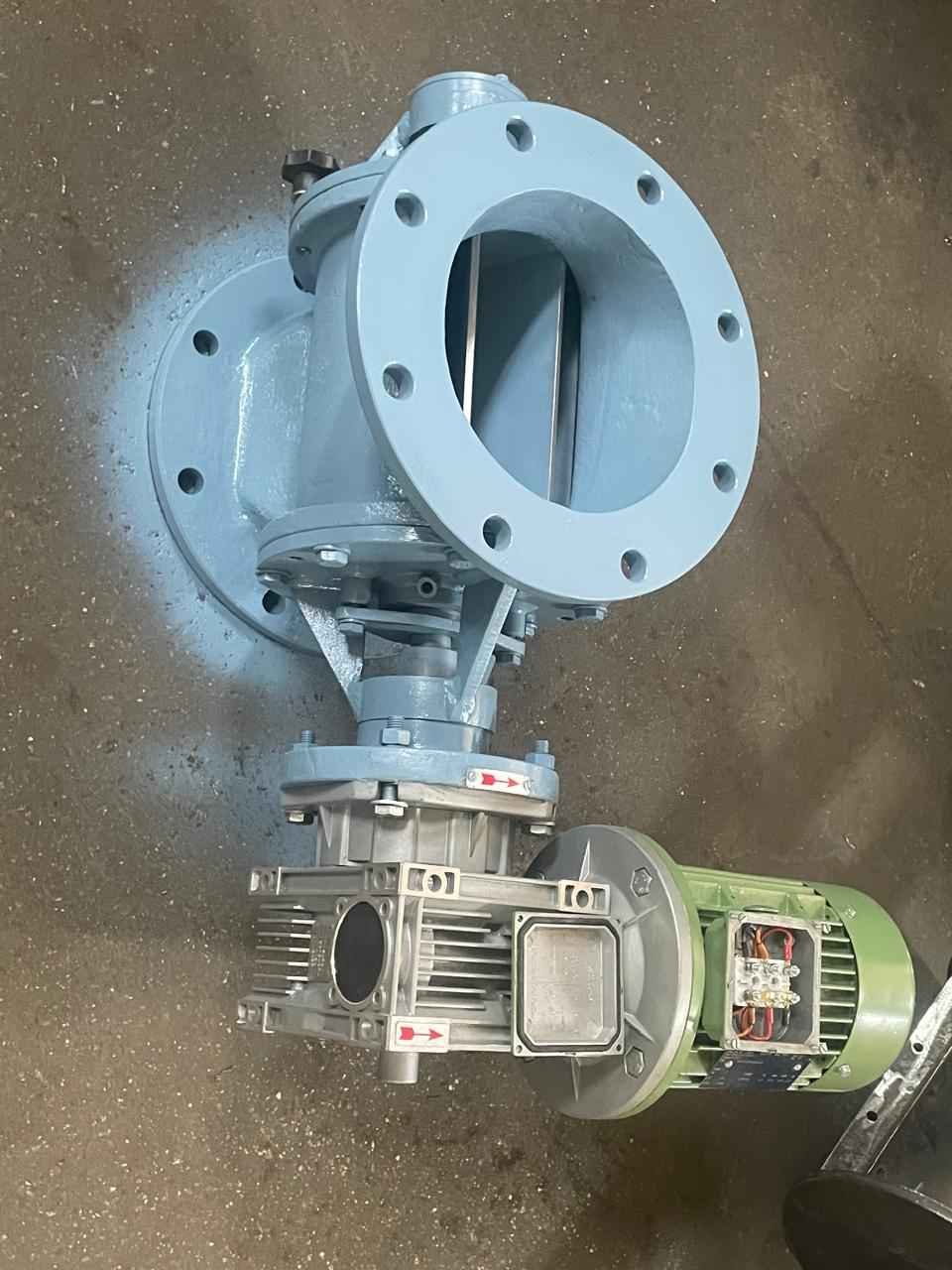

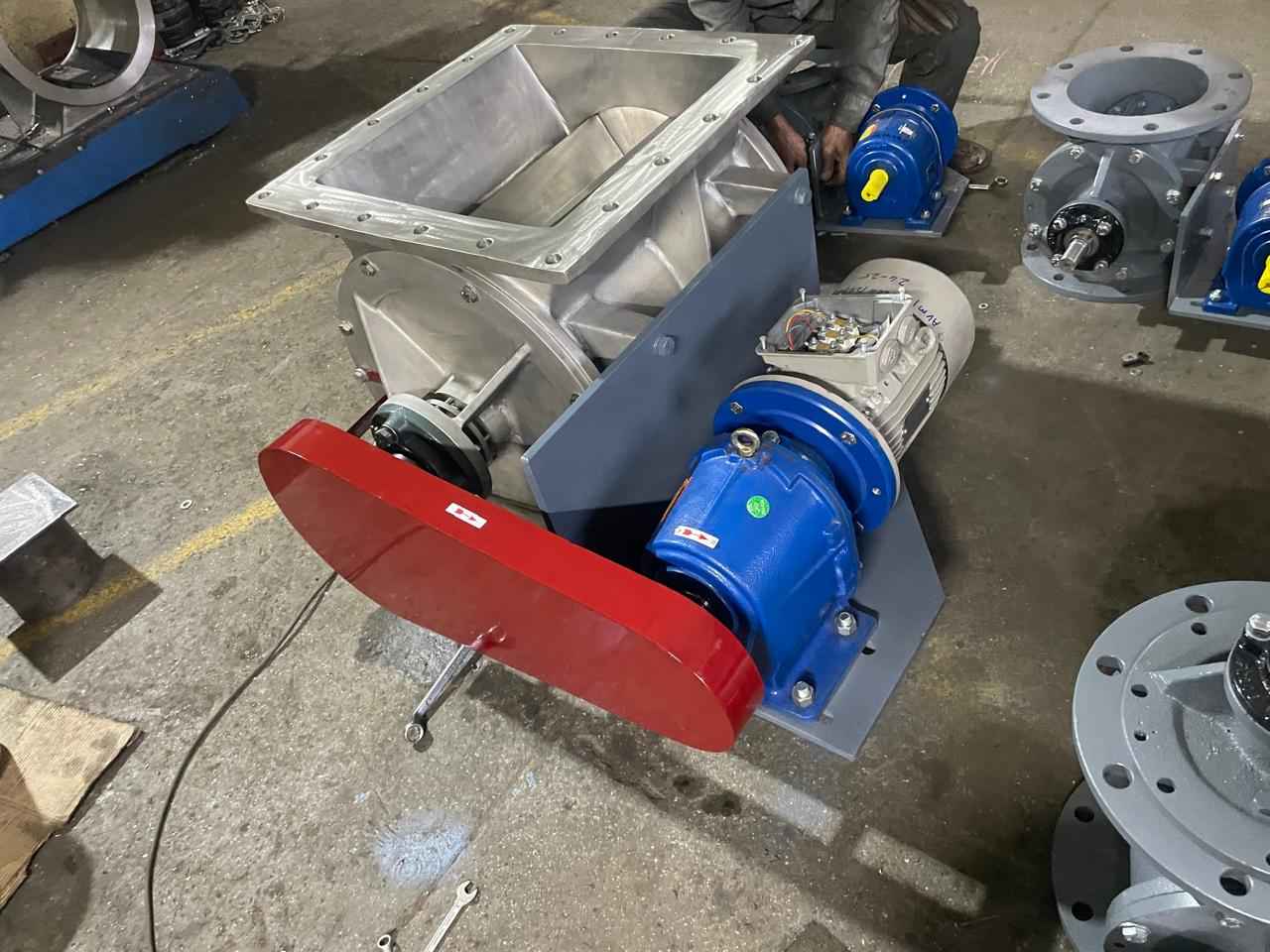

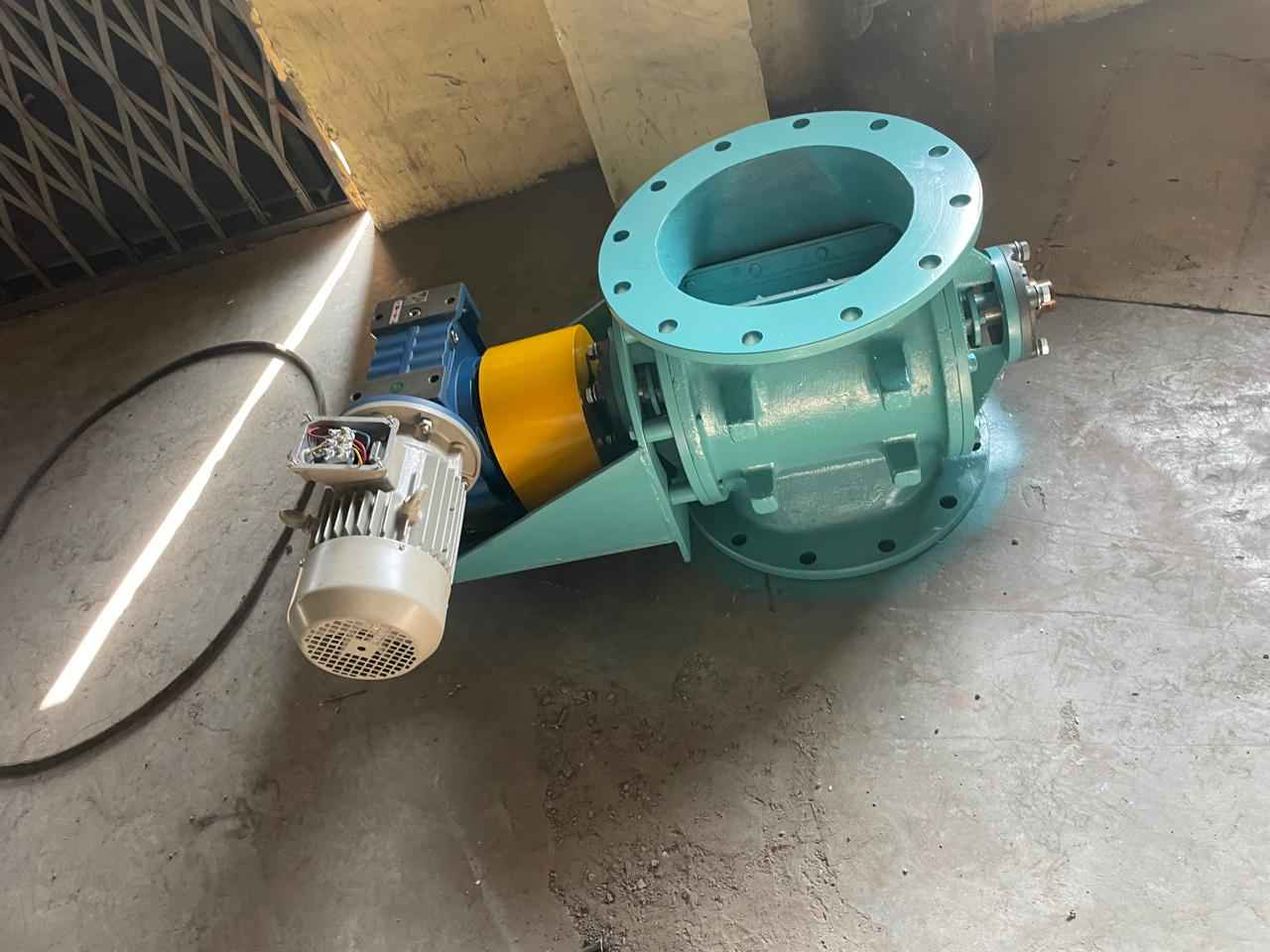

Product Image
